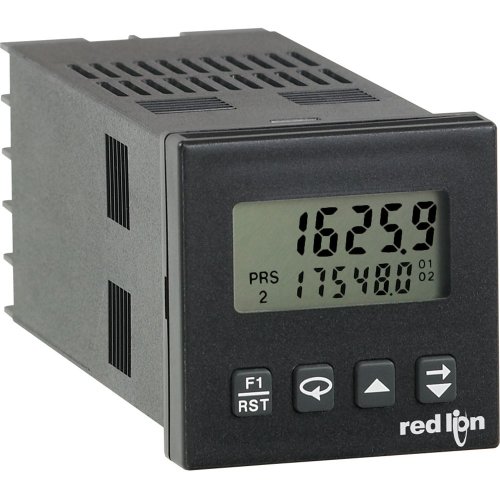

Red Lion C48 Series Panel Meters

Red Lion's C48 series of counter/timer panel meters are available as a standard counter/timer or a batch counter/timer. The standard unit is available with single or dual presets while the batch model has a main process counter or timer with dual presets and a secondary counter with a single preset. The secondary counter can be selected to function as a batch or a total counter.

The C48 series has a dual line display with six digit LCD display available in positive image reflective or negative image transmissive with red (top line) and green (bottom line) with backlighting.

The C48 series offers a selectable input that accepts signals from a variety of different sensors. This series also features programmable user inputs and front panel function key. The user inputs can be configured as sinking (active low) or sourcing (active high) inputs via a single plug jumper. The user inputs and the front panel function key can be configured to provide a variety of functions.

All C48 series models offer solid-state outputs with NPN current sinking or PNP current sourcing (select models), open-collector transistor outputs. All relay output boards are field replaceable.
