Horner XLe OCS

Brand: Horner

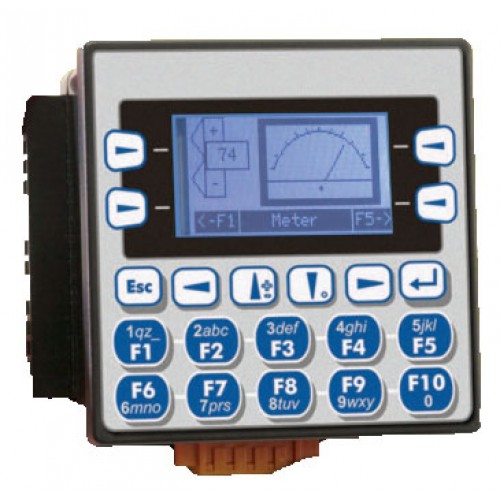

The XLe extends the OCS product range with a compact (96x96x57) and cost effective all-in-one controller.  With its 128x64 LC-Display it has full monochrome graphics capabilities and is equipped with built-in I/O. This I/O capability coupled with the dual protocol capabilities, optional internal telecommunication modules, makes the XLe a perfect solution for remote machine control and distributed control systems.

Features

  • 128x64 LCD screen.
  • Configurable function keys.
  • Two serial ports plus optional CAN port.
  • Standard MicroSD™ support.
  • Optional telecommunications module (Ethernet, GSM/GPRS modem & PSTN modem).
  • Supports SmartStix I/O which may be mounted up to 1.5km (6000 ft) from the unit.
  • Fully compatible with FREE Cscape software for PLC, HMI, I/O and networking functions.
  • 1/4 DIN panel or DIN rail mountable.

  • Horner XLe OCS

If you would like more information on Horner XLe OCS or any of our other products please call us on 01733 233481 or send an email to sales@digitalcontrols.biz
