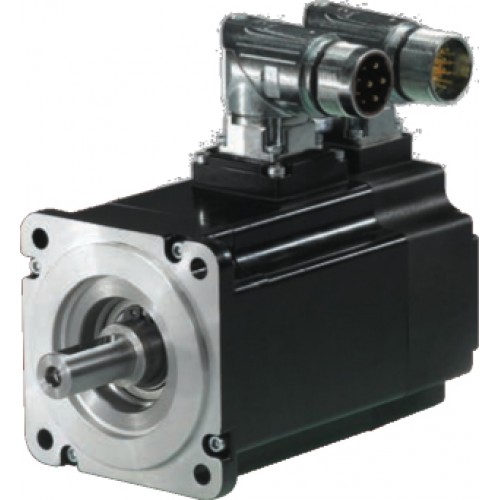

Horner PRO Rotary Brushless Servo Motors

With a Wide range of torque ratings and motor options, outstanding efficiency and reliability, PRO motors can meet any application requirement.

PRO motors are particularly suitable for positioning tasks in machine automation with demanding requirements for dynamics and stability.

Optimal solution for high performance motion control applications

• Rated output power range of 100 W to 8.3 kW

• Rated output torque of 0.3 to 40 Nm

• Speed of up to 5000 rpm

Broad range of motor options

• Winding options for 110, 220 and 400 VAC

• Standard feedback options include 2-pole resolver, 2000LPR RS422 encoder, and absolute multiturn encoder (Hiperface) with 128 sine/cosine per revolution
• Standard and high inertia options (motor sizes 115, 142, 180)

• Temperature protection by KTY84 (except PR-40)

• lP65 on motor body

• Powder coating on the motor body for a scratch-resistant surface

• Optional electromagnetic permanent-nodding brake; zero backlash

• Cable flange with connectors (for PR-40)

• 90° round turnable connectors, IP67 (except PR-40)

• Insulation system UL/CSA, Class F (1 55°c>

Customisation options

• IP67 sealing

• Extended temperature range rating

• I Various connectors

• Various feedback devices

• Optimised motor winding

• Special motor housing (such as stainless steel)

Key Benefits

• Rated output: 100 W - 8.3 kW

• Rated output torque: 0.3 - 40 Nm

• Large selection of feedback, shaft, flange, and brake options
• Excellent efficiency and reliability due to a unique electromagnetic design
• Ideal for positioning tasks in automated applications with strict requirements for dynamics and stability
• CE and UL compliance
