SmartServo Motion Control Solution

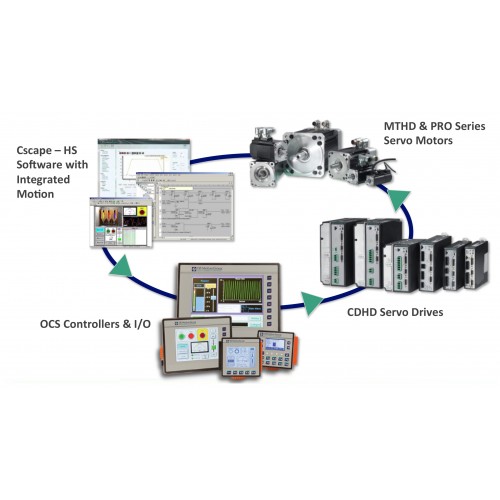

The SmartServo from Horner Automation is a fully developed motion control extension of the OCS All-in-One Controllers. It interconnects with  OCS over CANopen (DS30l and DS402 Compliant) built into every OCS Controller. Through this single connection, all configuration, programming, tuning and real-time commands are routed. The drive Configuration is created in Cscape, and stored in the OCS controller.

Smart Servo – Key Benefits

• Advanced Autotune function

• Pulse and Direction with electronic gearing

• Motion profiles: Trapeze,S-Curve

• Outstanding Frequency response of upto 3Khz

• Anti Vibration Algorithm

• Controls current, velocity and position modes of operation

• Homing procedures:

• failing/rising limit edge index mark,

• home switch and more

• LimitProcedures: falling/rising limit edge and more

• Can be coupled with any Servo Motor Type and a variety of feedback types including Resolver

Advanced OCS Integration

• Linked over CANopen Network

• Drive Program Stored in OCS Memory

• Motion Commands via OCS Function Blocks

Cscape Commissioning Tools

• Auto-tuning of Velocity and Position Loops

• Real-time Recording and Graphics

Works with Any Servo Motor

• Brushless DC Motors

• DC Brush Motors

Large General Purpose I/O Count

• 11 Digital Inputs & 6 Digital Outputs

• 1 Analog In (1 6-Bit) & 1 Analog Out (8-Bit)


200VAC & 400/480VAC Models, single and three-phase up to 48A peak
